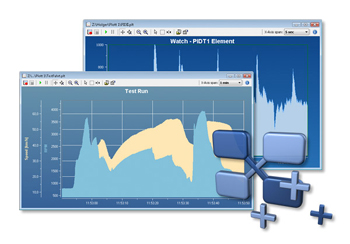

The plotter allows the graphical representation of
CAN data using any number of channels.
Features:
- Real-time display
- Unlimited number of channels
- Unlimited number of Y-axes
- X-axis and Y-axes can be zoomed and scrolled
quite freely, even during recording
- Labelling of time axis with absolute or relative
time stamps
- Facility for automatic adaptation of axes to
plots
- Reversible Y-axes
- Logarithmic scales
- Cursor display for plot measurement
- Export to EMF-, PNG-, BMP-, JPG graphical formats
- Data import from the PCAN-Explorer Tracer
- Representation of limiting values and value
ranges
- Comprehensive formatting options for representing
the curves, axes and the plotter layout
System requirements:
- PCAN-Explorer 5
- Windows® 7/Vista/XP (32/64Bit)
- at least 512 MB RAM - from 1 GHz CPU
Scope of supply
- PCAN-Plotter Add-in software
MPPK-CAN-Analyzer-EXPLO5-PLO-Add-in2(IPES-005087)
